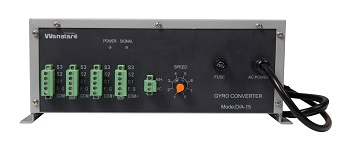

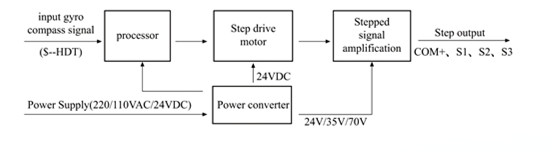

Digital to Stepper Gyro Converter ( D/A-15 ) can convert digital signals into stepper signals. The input gyro compass signal is in NMEA0183 format, Baud rate: 4800 or 9600; Multiple statements can be identified: $--HDT、$--HDM、$--HDG, the output gyro compass signal is 24V stepper signal ( COM+、S1、S2、S3 ). Ratio (180: 1 or 90 : 1), tracking rate (8).
1. Size: 295 wide X 245 deep X 120 high mm;
2. Power supply: 220VAC or 110VAC (24VDC can be selected);
4. Tracking speed 1-8: In order to adapt to different compass dividers (compass repeaters), the device can adjust the tracking speed, which can be divided into 8 gears; the first gear is slow and the eight gears are fast, and the adjusting benchmark is that the dividing compass is not out of step.
5. Working temperature: -20-+70 degrees;
6. Humidity: Relative humidity: < 95%;
7. On-load: It can directly drive 1-2 azimuth compasses and 1-4 compass converters.
